Construction wood – system elements

The megawood® construction wood is stable, weatherproof and durable. The system elements can be used to make everything from sandboxes to raised beds or housings for recycling bins, it even being possible to build complete carports*. The new rhombus profile makes it possible to create attractive wooden claddings and it can either be visibly screwed on or it can be mounted invisibly by using a clip. *Please adhere to all of the building regulations.

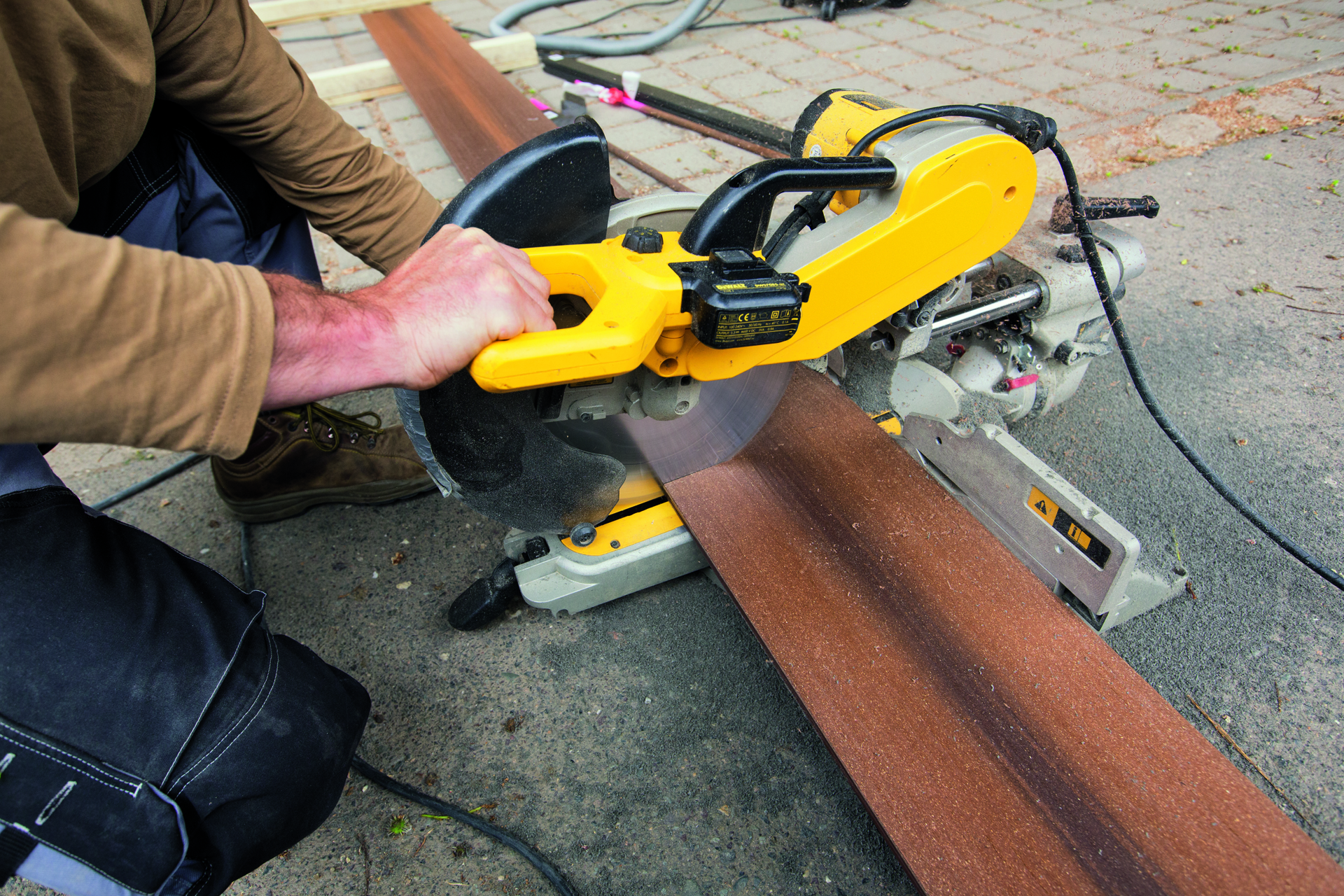

Signum Barfußdiele in Muskat

Details at a glance

Construction plank

Dimensions:
L: 420 cm
(40 x 145 mm)

L: 360 cm
(40 x 112 mm)

Colours:
NATURAL BROWN
NUT BROWN
BASALT GREY
LAVA BROWN
SLATE GREY
INGWER
SEL GRIS
LORBEER
MUSKAT
TONKA

Order samples

Construction wood

Dimensions:
round d=90 mm
square 90 x 90 mm
octagonal 90 x 90 mm
oval 90 x 60 mm
L: 360 cm

Farben:
LAVA BROWN
SLATE GREY

Order samples

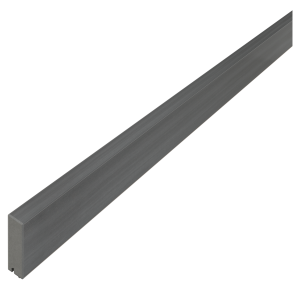

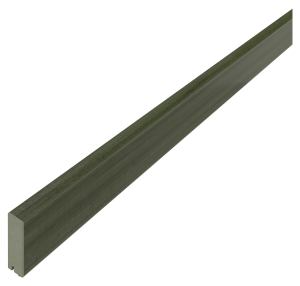

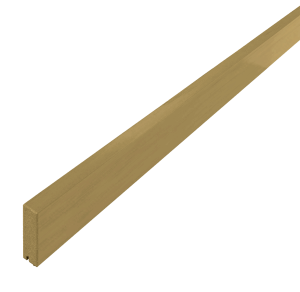

Rhombus profile

Dimensions:
20,5 x 81 mm
L: 420 cm

Mounting:
Stainless steel V2A and
stainless steel blackened V2A

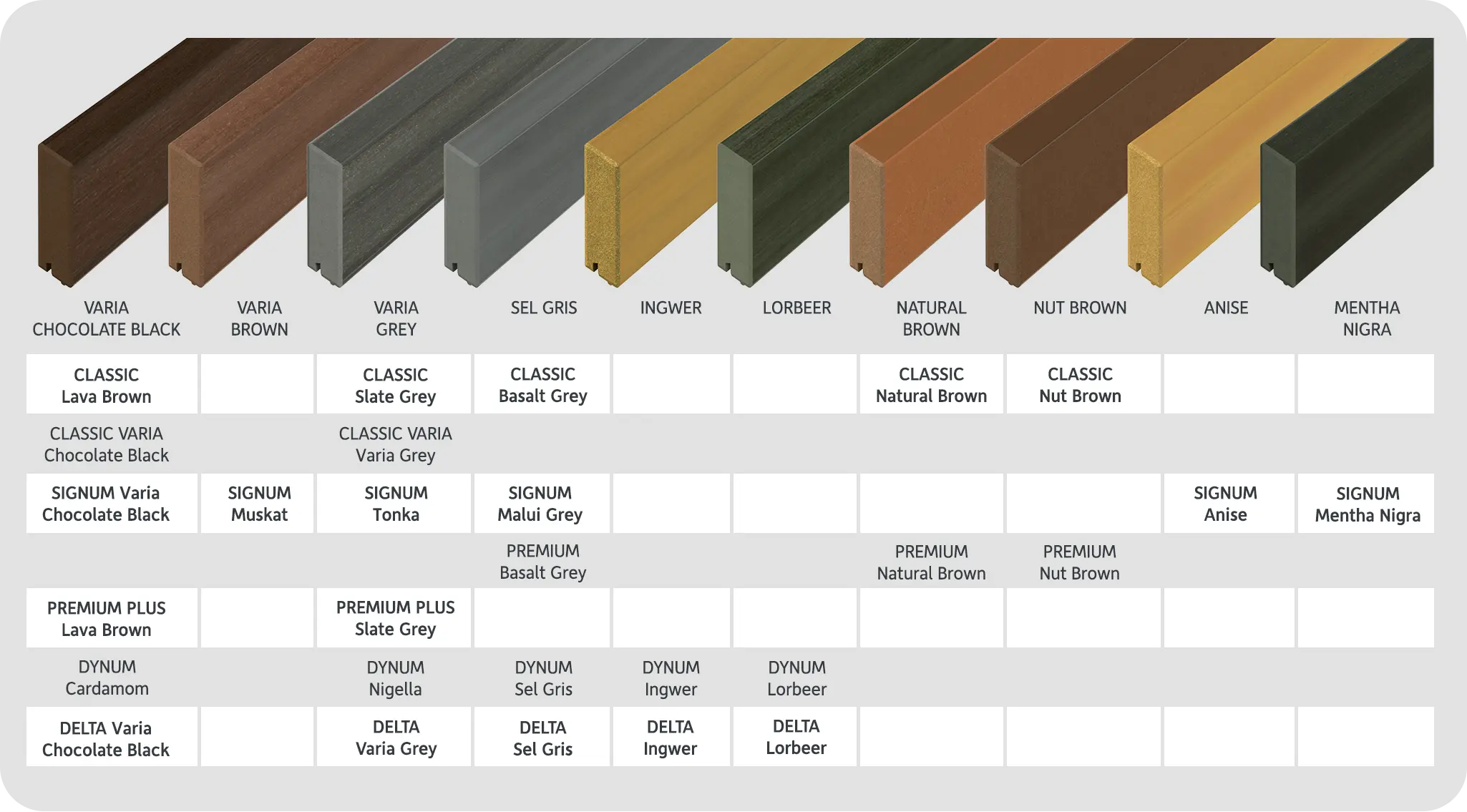

Farben:
VARIA CHOCOLATE BLACK
VARIA GREY
VARIA BROWN
INGWER
LORBEER
SEL GRIS
NATURAL BROWN
NUT BROWN



Rhombus profiles
as end trim for decking boards

Application examples construction wood

Fence

A fence for all cases. Flexible in use, the megawood® construction plank can be long up to 210 cm. In combination with concrete, a combination that lasts a lifetime.
Clear width for fence with construction plank: 40x112 mm: max. 170 cm (length 180 cm) 40x145 mm: max. 200 cm (length 210 cm)

  • Fence

    A fence for all cases. Flexible in use, the megawood® construction plank can be long up to 210 cm. In combination with concrete, a combination that lasts a lifetime.
  • Clear width for fence with construction plank: 40x112 mm: max. 170 cm (length 180 cm) 40x145 mm: max. 200 cm (length 210 cm)

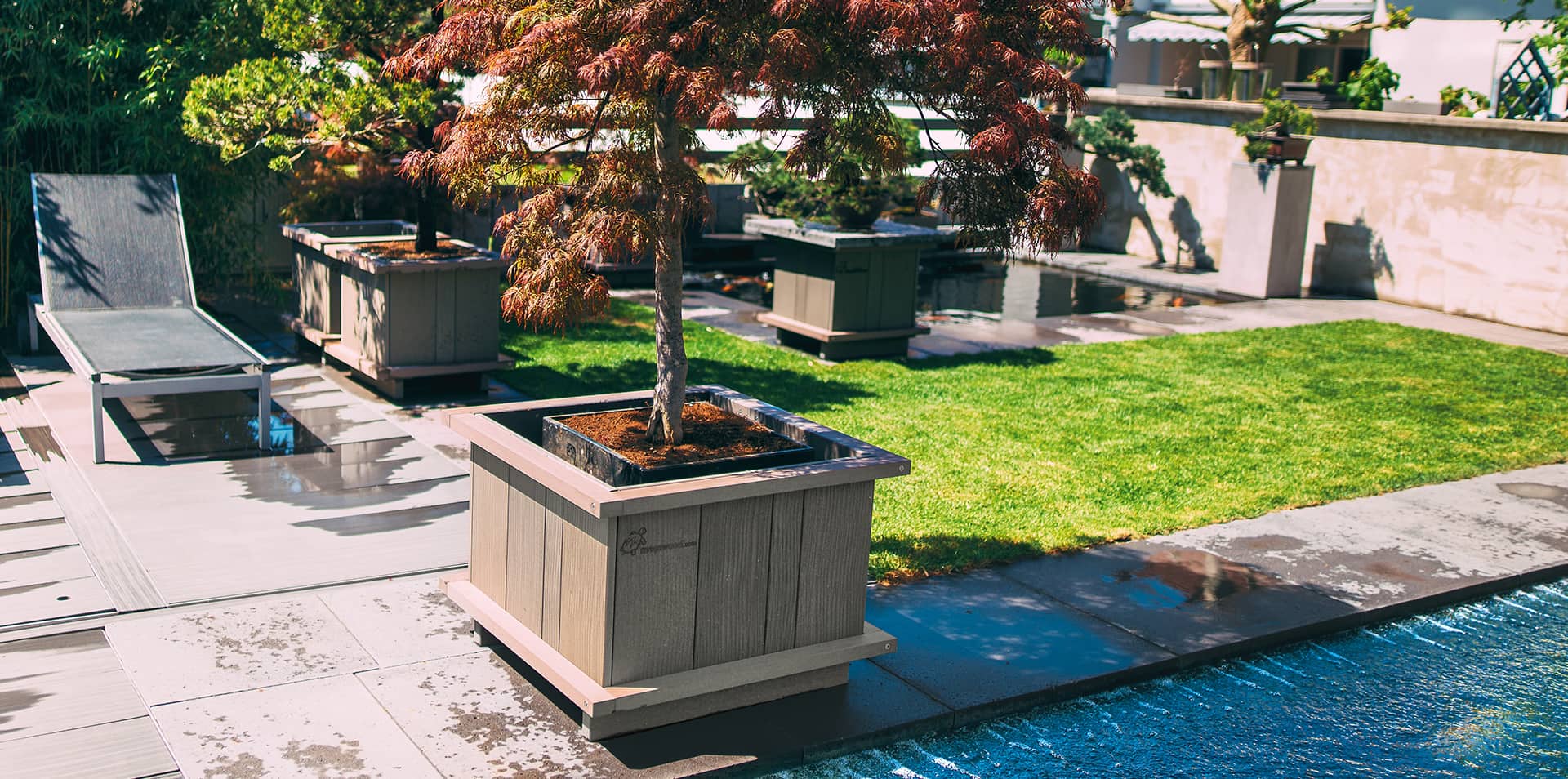

Plant pot

Construction planks and boards - megawood® products can be processed like wood and combined for new durable outdoor applications. Or you can make use of our available items in a complete kit.
You can find the right assembly aid for your planter in the download area at: Downloads.

  • Plant pot

    Construction planks and boards - megawood® products can be processed like wood and combined for new durable outdoor applications. Or you can make use of our available items in a complete kit.
  • You can find the right assembly aid for your planter in the download area at: Downloads.

Stairs

The megawood® construction plank is the ideal covering for your patio stairs. Due to the extremely high load-bearing capacity of the plank, you can implement stair constructions with an axial dimension of up to 100 cm and an overhang of up to 20 cm.
Achsmaße Treppe mit Konstruktionsbohle: 40x112 mm - max. 80 cm 40x145 mm - max. 100 cm

  • Stairs

    The megawood® construction plank is the ideal covering for your patio stairs. Due to the extremely high load-bearing capacity of the plank, you can implement stair constructions with an axial dimension of up to 100 cm and an overhang of up to 20 cm.
  • Achsmaße Treppe mit Konstruktionsbohle: 40x112 mm - max. 80 cm 40x145 mm - max. 100 cm
Verkleidung
The rhombus profile enables this wood panelling and can be visibly screwed or invisibly fastened with a clip.

Rhombus profile

The megawood® rhombus profile is stable, weatherproof, hard-wearing and offers a wide range of application possibilities. The system elements can be used to build cladding for recycling bins, carports or decorative elements for wall surfaces.
Span rhombus profile: up to 80 cm in the multi span system
  • The rhombus profile enables this wood panelling and can be visibly screwed or invisibly fastened with a clip.

  • Rhombus profile

    The megawood® rhombus profile is stable, weatherproof, hard-wearing and offers a wide range of application possibilities. The system elements can be used to build cladding for recycling bins, carports or decorative elements for wall surfaces.
  • Span rhombus profile: up to 80 cm in the multi span system

Bench

The megawood® bench with continuous construction planks can be assembled with an axle dimension of up to 130 cm and an overhang of up to 25 cm. The seat and the backrest form an elegant unit that promises maximum seating comfort. The bench is available as a complete kit in 10 colour variants.
Axle dimensions for bench with construction plank: 40x112 mm - max. 130 cm 40x145 mm - max. 160 cm

  • Bench

    The megawood® bench with continuous construction planks can be assembled with an axle dimension of up to 130 cm and an overhang of up to 25 cm. The seat and the backrest form an elegant unit that promises maximum seating comfort. The bench is available as a complete kit in 10 colour variants.
  • Axle dimensions for bench with construction plank: 40x112 mm - max. 130 cm 40x145 mm - max. 160 cm

Sandbox

Construction planks and boards - megawood® products can be processed like wood and combined for new durable outdoor applications. Or you can make use of our available items in a complete kit.
Die passende Montagehilfe für Ihren Sandkasten finden Sie im Downloadbereich unter: Downloads

  • Sandbox

    Construction planks and boards - megawood® products can be processed like wood and combined for new durable outdoor applications. Or you can make use of our available items in a complete kit.
  • Die passende Montagehilfe für Ihren Sandkasten finden Sie im Downloadbereich unter: Downloads

Web

Even in a highly stressed area such as jetty construction, the megawood® construction plank with an axial dimension of up to 120 cm and an overhang of up to 20 cm can be used as a jetty deck. Occasional contact with water is no problem for the plank.
Axial dimensions for the web with construction plank: 40x112 mm - max. 100 cm 40x145 mm - max. 120 cm

  • Web

    Even in a highly stressed area such as jetty construction, the megawood® construction plank with an axial dimension of up to 120 cm and an overhang of up to 20 cm can be used as a jetty deck. Occasional contact with water is no problem for the plank.
  • Axial dimensions for the web with construction plank: 40x112 mm - max. 100 cm 40x145 mm - max. 120 cm

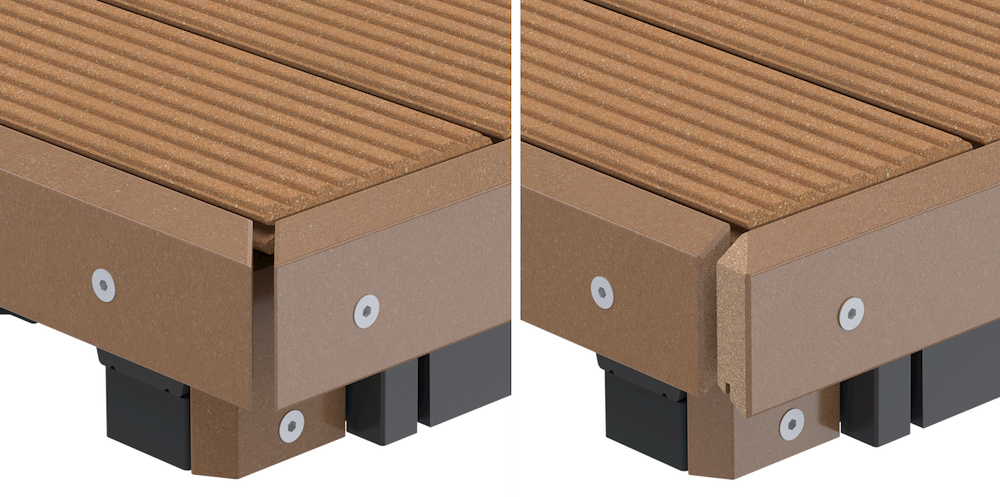

Abschlussleiste

Mitre cut

Butt joint

End strip

The megawood® rhombus profile can be used as an edging strip for your terrace edging. You can install the rhombus profile as a corner solution with a straight cut or with a butt joint. You can find more information on this in the download area in the VARIO FIX and FIX STEP construction plan.

  • Mitre cut

  • Butt joint

  • End strip

    The megawood® rhombus profile can be used as an edging strip for your terrace edging. You can install the rhombus profile as a corner solution with a straight cut or with a butt joint. You can find more information on this in the download area in the VARIO FIX and FIX STEP construction plan.
